3300 XL NSv
3300 XL NSv Proximity Probe
Armored proximity sensing assembly.
1.0 m lead with a M10 × 1 mounting case.
TARGET GAP / PROBE / CABLE / NSv SENSOR
1.0 m
M10 × 1
50 mm
PPS sensing tip. Matched coaxial connection for the NSv system.
A direct line to your automation supplier.
Send your model number and quantity for product information and a quotation.
Sales manager
Jim PeiPhone/WhatsApp
+86 18020776782| Parameter | Specification |
|---|---|
| Total probe cable length | 1.0 m |
| Thread designation | M10 × 1 |
| Case length | 50 mm |
| Unthreaded length | 0 mm |
| Probe temperature range | −52 to +177 °C |
| Storage temperature range | −52 to +177 °C |
| Cable impedance | 75 Ω |
| Minimum cable bend radius | 25.4 mm |
| Recommended case torque | 11.3 N·m |
| Maximum case torque | 33.9 N·m |
| Recommended torque, first 3 threads | 7.5 N·m |
| Maximum torque, first 3 threads | 22.6 N·m |
| Connector maximum tightening torque | 0.56 N·m |
| Cable-to-case tensile strength | 220 N |
| Mated connector tensile strength | 220 N |
| Armor tensile strength | 220 N |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Cable dielectric | FEP |
| Connector construction | Gold-plated brass |
| Connector type | Miniature ClickLoc coaxial |
| Connector protector | Not included |
| Cable armor | Included |
| Approval order selection | No hazardous-area approvals (00) |
Torque limits depend on thread engagement. Sustained temperatures below −34 °C can shorten the pressure-seal life; the probe is not pressure tested. Verify the complete NSv system length and applicable approval before installation.
3300 XL NSV
Armored proximity sensing assembly.

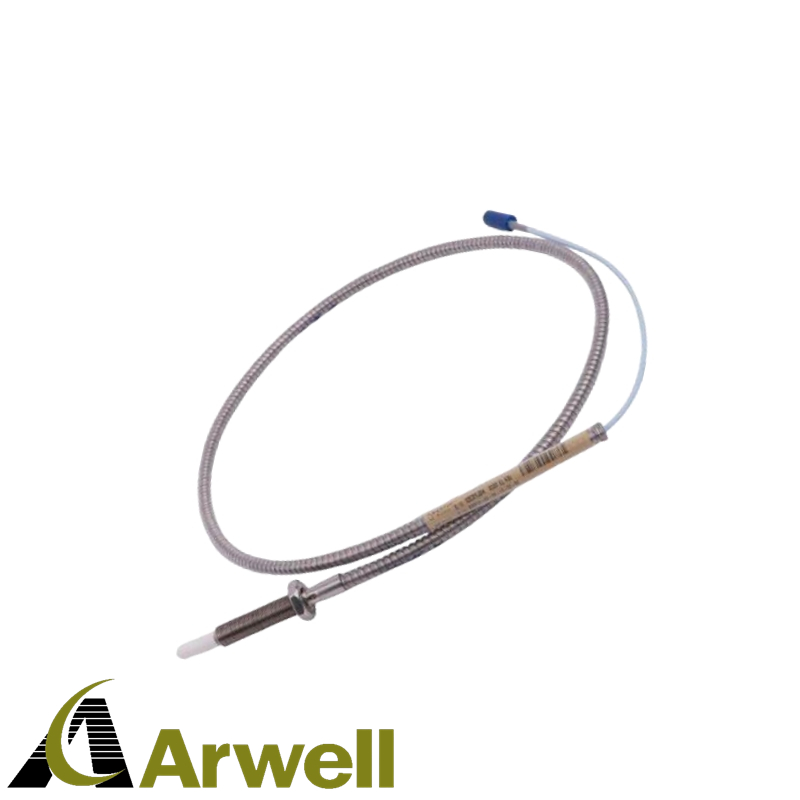

Bently Nevada 330910-00-05-10-02-00 is a 3300 XL NSv proximity probe with a M10 × 1 threaded case and a 1.0 m integral cable. Its order configuration specifies a 50 mm case with 0 mm of unthreaded length. An armored cable protects the probe lead along its routed length. The miniature ClickLoc connection is supplied without a connector protector. The probe works with matching NSv signal-conditioning components to measure the position of a conductive target. Correct system length, target clearance and installation approval must be checked before replacement.
01 / Sense target distance
The probe tip interacts with a conductive target so that compatible signal-conditioning electronics can determine target separation.
02 / Carry the high-frequency signal
The matched coaxial lead connects the probe to the NSv system without substituting a general-purpose cable.
03 / Match the selected mechanical format
The armored lead protects the routed cable, while the threaded case sets the probe mounting arrangement.
Keep the electrical length matched
The one-metre probe requires the correct matching extension cable for the selected NSv system length.
The probe is one component of the transducer system; it does not contain the Proximitor sensor power and output circuitry.
Check the mounting configuration
The selected case uses M10 × 1 threads, a 50 mm case and 0 mm unthreaded length. Preserve these selections when replacing an installed probe.
Apply the approval selection
The 00 selection does not provide hazardous-area approvals. Do not infer approval from the wider NSv product family.
