PanelView Plus 400
PanelView Plus 400 Grayscale Keypad Terminal
Grayscale keypad operation.
DC power with Ethernet and serial connectivity.
RUNTIME / KEYPAD / DISPLAY / CONTROLLER
3.8 in.
320 × 240 pixels
18–30 VDC (24 VDC nominal)
Original PanelView Plus generation. Physical-key machine operation.
A direct line to your automation supplier.
Send your model number and quantity for product information and a quotation.
Sales manager
Jim PeiPhone/WhatsApp
+86 18020776782| Parameter | Specification |
|---|---|
| Display diagonal | 3.8 in. |
| Display resolution | 320 × 240 pixels |
| Supply voltage | 18–30 VDC (24 VDC nominal) |
| Maximum power consumption | 25 W |
| Supply current at 24 VDC | 1.0 A maximum |
| Typical luminance | 120 cd/m² |
| Keypad actuation life | 1 million presses |
| Key operating force | 340 g |
| Clock accuracy | ±2 minutes per month |
| Clock battery life | 5 years minimum at 25 °C |
| Operating temperature | 0–55 °C |
| Storage temperature | −25 to +70 °C |
| Relative humidity | 5–95%, noncondensing |
| Operating altitude | 2000 m |
| Operating shock | 15 g, 11 ms |
| Nonoperating shock | 30 g, 11 ms |
| Heat dissipation | 85 BTU/h |
| External CompactFlash capacity | 512 MB maximum |
| Application flash capacity | 5 MB (Series A); 10 MB (Series B or later) |
| Display technology | Grayscale passive-matrix FSTN |
| Operator input | Keypad |
| Serial interface | RS-232 |
| USB interface | USB host |
| Ethernet interface | 10/100Base-T |
| Clock battery replacement | Not field replaceable |
| Status indicators | COMM (green), FAULT (red) |
| Operator runtime | FactoryTalk View Machine Edition |
| Display backlight | LED |
Application flash capacity depends on the hardware series. Dimensions and base-unit weight exclude an optional communication module; verify the existing terminal series and runtime before replacement.
PANELVIEW PLUS 400
Grayscale keypad operation.

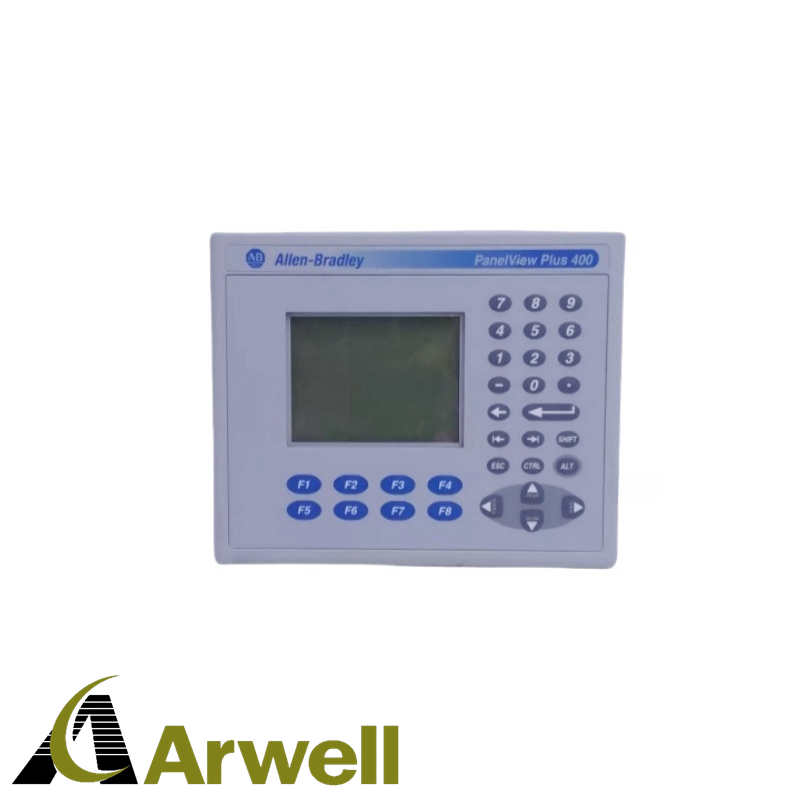

Allen-Bradley 2711P-K4M20D is a DC-powered PanelView Plus 400 keypad terminal with a grayscale display. The 3.8-inch screen provides a 320 × 240 pixel workspace for the configured machine interface. Its network base includes Ethernet and RS-232 connections. The keypad supports numeric entry and application navigation through physical controls. Removable CompactFlash storage assists with application and maintenance file handling. This original-generation configuration must be matched to the installed project and is distinct from later Plus 6 color terminals.
01 / Present the machine application
The grayscale display shows the process values, alarm information and control objects defined in the loaded Machine Edition runtime.
02 / Accept physical-key commands
Numeric and navigation keys provide a deliberate operator-entry method, while function-key behavior is assigned by the application.
03 / Connect the configured controller
Ethernet carries the selected network driver traffic while the separate RS-232 port supports its configured serial role.
Retain the original runtime generation
Application compatibility depends on the installed terminal firmware and the saved runtime version. A similar faceplate does not establish an interchangeable configuration.
Record the terminal series before deciding which application-memory limit applies.
Power and panel replacement
This configuration uses DC power. Check the terminal power connector and enclosure arrangement before replacement.
Communication planning
Preserve the network address, controller path and any fitted communication module.
