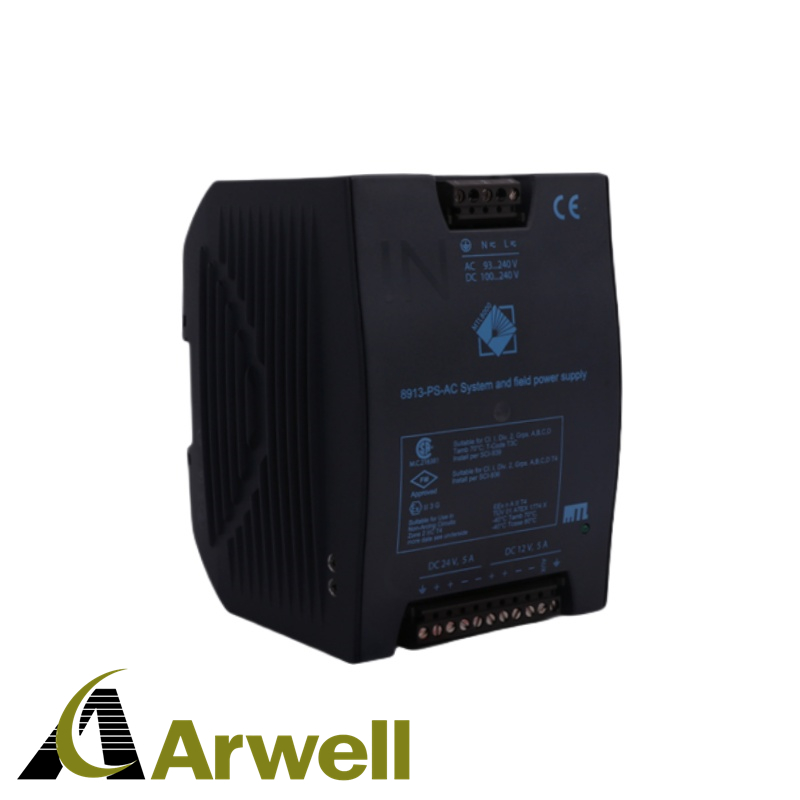

MTL 8913-PS-AC System Power - dual voltage

MTL 8913-PS-AC System Power - dual voltage

Item NO.: 8913-PS-AC

Price:Request a Quote

Warranty:1 year

Condition:Brand new and factory sealed

Inquire Email:sales1@apterpower.com

Mobile/WhatsApp:+8618020776782

Click To Get Datasheet:(click)

Detail

  • Product NameMTL 8913-PS-AC System Power - dual voltage
  • Item NO.8913-PS-AC
  • Weight0.7500 kg = 1.6535 lb = 26.4555 oz
  • CategoryDCS
  • BrandOTHER
  • Creation Time2025-08-04
  • MTL 8913-PS-AC supplies separate system and auxiliary DC rails for MTL8000 Process I/O, with wide-range AC/DC input and a power-fail signal.
EATON MTL / MTL8000 PROCESS I/O

8913-PS-AC

Dual-Voltage System Power Supply

AC/DC input power converted to separate system and auxiliary DC outputs.

AC/DC inputSystem powerAuxiliary power

Product dimensions: 103 x 138 x 113.6 mm (W x H x D). Weight: 0.75 kg (1.6535 lbs).

01

Contact info

Sales manager
Jim Pei
Wechat
ZXH18020776782
Phone/WhatsApp
02

Specifications

AC input 85-264 V AC
DC input 90-264 V DC
Input frequency 47-65 Hz
Efficiency Up to 87%
Output 1 voltage 24.7 V DC ±10%
Output 2 voltage 11.95 V DC ±5%
Output 1 current 5 A nominal; derating applies
Output 2 current 5 A
Input-output isolation 2800 V DC
Full-load hold-up 15 ms typical
Power-fail threshold 10.30-11.33 V
Operating ambient -40 to +70 °C
Maximum case temperature +80 °C
Storage temperature -40 to +100 °C
Humidity test 93% RH, 40 °C, 56 days
Input protection Slow-blow fuse and VDR
Thermal protection Reduced output power
Supply indicator LED
Input connector Two-part pluggable
Output connector Two-part pluggable
Power-fail interface Open collector; output 2 only
Healthy signal state Low impedance to output 2 negative
Failure signal state High impedance to output 2 negative
Parallel load sharing Internal diode on 12 V output only
DIN rail profile 35 x 7.5 mm T-section
Electrical safety EN 60950
Hazardous-area rating Zone 2, IIC T4
Hazardous-location rating Class I, Division 2, Groups A-D, T4
FM certificate 3011821
ATEX certificate TÜV01ATEX1774X
CSA certificate 1368864
The 24 V output requires input-voltage and temperature derating. Parallel redundancy uses an internal sharing diode on the 12 V output only.
03

Description

Separate system and auxiliary supplies are combined in the MTL 8913-PS-AC dual-voltage power unit for MTL8000 Process I/O. Its input accommodates 85-264 VAC or 90-264 VDC, feeding nominal 12 V and 24 V output paths. A typical full-load hold-up time of 15 ms helps bridge short input interruptions. The system-power connection includes a sharing diode for the supported parallel supply arrangement. An open-collector status output makes loss of that supply available to the cabinet monitoring interface. Auxiliary-load selection must account for the input-voltage and temperature derating of the field-power output.

04

Power Distribution

Separate DC power paths

The supply converts its AC or DC input into separate outputs for MTL8000 system electronics and auxiliary field circuits.

System-supply status signal

An open-collector power-fail connection reports the state of the system-power output to a monitoring interface.

05

Redundant Supply Integration

01 Parallel system-power operation

The internal sharing diode is provided on the 12 V output. Use that output arrangement when implementing the supported parallel supply connection.

02 Auxiliary-load planning

The 24 V output follows input-voltage and temperature derating. Calculate the field load against those limits when selecting the cabinet power arrangement.
