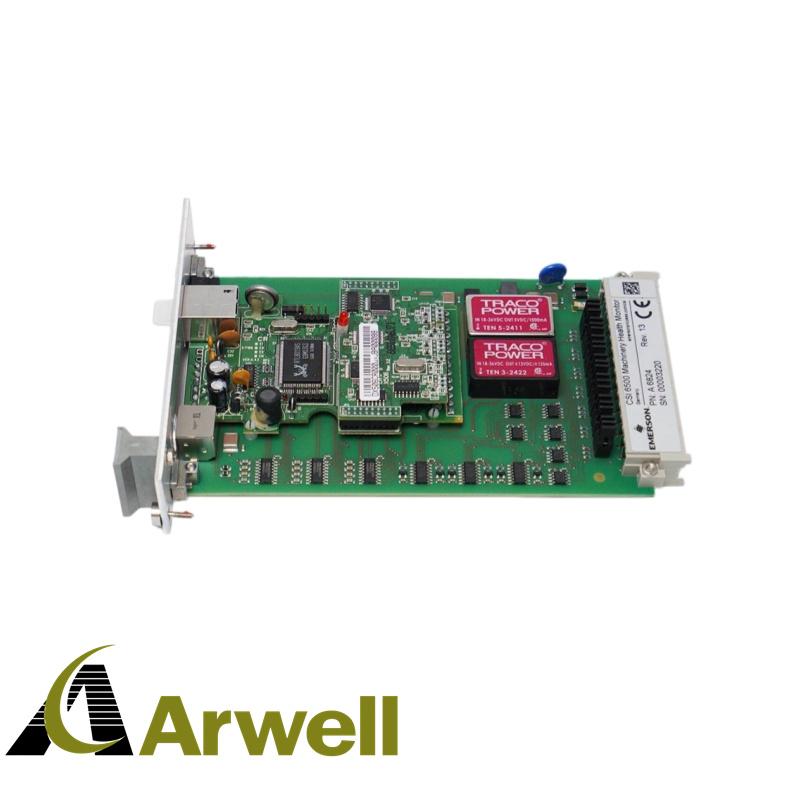

EMERSON A6824 ModBus and Rack Interface Module

Product information

Product Name: EMERSON A6824 ModBus and Rack Interface Module

Product Model: A6824

Type: ModBus and Rack Interface Module

Manufacturer: EMERSON

Weight: 0.32kg

Place of shipment: Xiamen, China

Green LED: Power on

Handle: for easy removal of cards and boards

Module and sensor identification board

Example data types: speed, vibration (1/2x, 1x, etc.), gap value, alarm status, channel OK, phase

Environment, general

Module: IP 00. DIN 40050

Front plate: IP 21. DIN 40050

Climate: DIN 40040 class KTF

Operating temperature: 0° - 65°C (32° - 149°F)

Storage temperature: -30° - 85°C (-22° - 185°F)

Relative humidity: 5 - 95%, non-condensing

Vibration; IEC 68-2. Part 6

0.15 mm, 10 - 55 Hz

19.6 mm/s2. 55 - 150 Hz

Shock: IEC 68-2. Part 29

98 m/s2 peak, 16 ms

Electromagnetic compatibility: EN50081-1 / EN50082-2

Power consumption: 5 W max

features

1) High-reliability design: Built for critical rotating machinery protection in demanding industrial environments.

2) Comprehensive data integration: Reads parameters from AMS 6500 modules and outputs via ModBus TCP/IP and ModBus RTU.

3) Flexible communication options: Supports Ethernet and serial communication with optional redundant paths.

4) Seamless system integration: Works with PlantWeb®, Ovation®, and DeltaV™ systems for unified machine health monitoring.

5) Compact modular design: 3U, single-slot module reduces cabinet space and supports multiple rack configurations.

6) API 670 compliance: Meets industry standards with hot-swappable capability for easy maintenance.

7) Advanced diagnostics: Includes self-test functions for hardware, power supply, and temperature monitoring.

8) User-friendly operation: Provides local display support and password-protected configuration for secure and efficient use.
