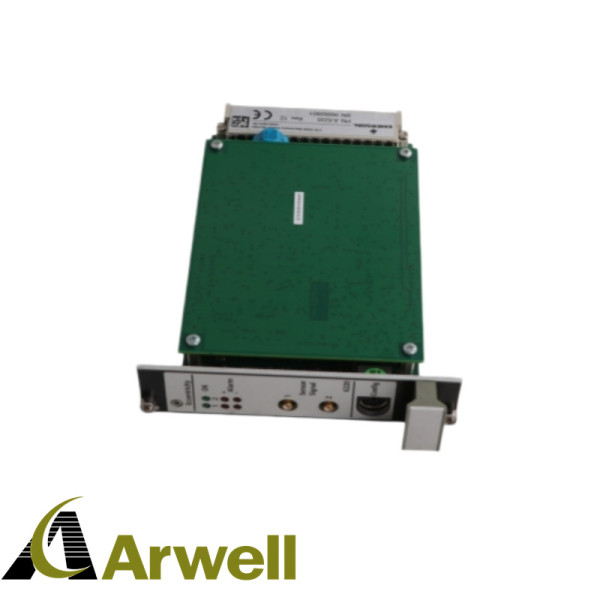

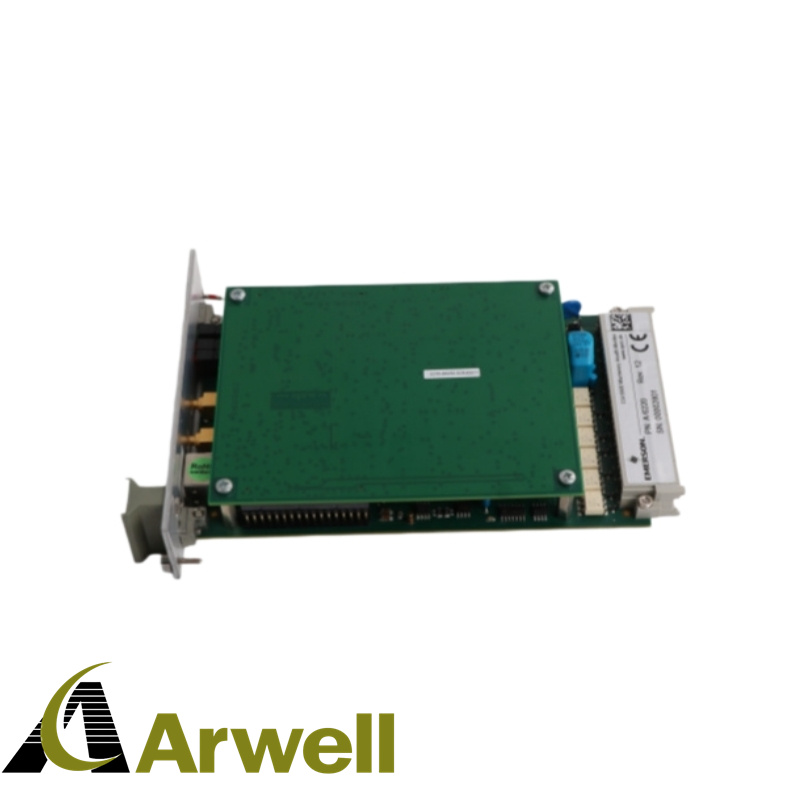

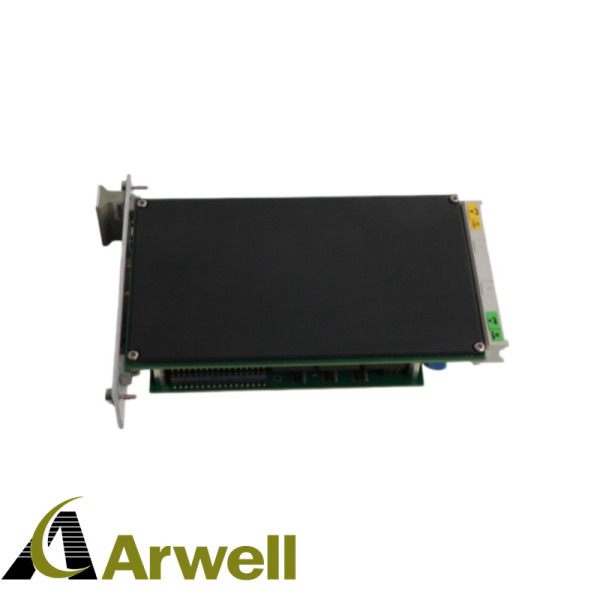

EMERSON A6220 Dual Channel Eccentric Vibration Monitoring

EMERSON A6220 Dual Channel Eccentric Vibration Monitoring

Item NO.: A6220
Inquiry

Price：Ask

Warranty：12 months

Condition：Brand new and factory sealed

Inquire Email：sales1@apterpower.com

Mobile/Whatsapp：+8618020776782

Click To Get Datasheet：（click）

Detail

  • Product NameEMERSON A6220 Dual Channel Eccentric Vibration Monitoring
  • Item NO.A6220
  • Weight0.3000 kg = 0.6614 lb = 10.5822 oz
  • CategoryDCS
  • BrandEmerson
  • Creation Time2026-04-20
  • EMERSON A6220 Dual Channel Eccentric Vibration Monitoring

Product Parameter Information

Product Name

EMERSON A6220 Dual Channel Eccentric Vibration Monitoring

Product Model

A6220

Type

Dual Channel Eccentric Vibration Monitoring

Manufacturer

EMERSON

Estimated Shipping Size

3.1x19x12.8cm

Weight

0.3 kg

Place of shipment

Xiamen, China

Input Resistance

>100 kΩ

Input Voltage Range

-1 to 23 VDC

Input Frequency Range

0.017 - 70 Hz (102 - 4200 rpm)

Compatible sensor part numbers

6422, 6423, 6424, 6425

rear bufferedproportional outputs

0/4-20 mA output, 0 - 10 V output

Country of origin

Germany (DE)




Main Features

The Emerson A6220 Dual Channel Eccentric Vibration Monitoring module is a high-reliability solution designed for critical rotating machinery protection within the AMS 6500 system. It provides accurate measurement of shaft eccentricity using non-contact displacement sensors, typically installed near bearing housings or thrust bearings with an eccentricity target. The module continuously compares vibration parameters against predefined alarm setpoints to trigger alarms and relay outputs for effective machinery protection.It is specifically optimized for low-speed applications (below 600 rpm), making it essential for large sleeve-bearing machines where shaft bow or bending detection is critical. As a 1-slot API 670-compliant module, it integrates seamlessly into PlantWeb®, Ovation®, and DeltaV™ systems via AMS software, enabling advanced predictive diagnostics and early fault detection for turbines, compressors, and other rotating equipment.
