EMERSON A6210 Thrust Differential Expansion Module
Price：Ask
Warranty：12 months
Condition：Brand new and factory sealed
Inquire Email：sales1@apterpower.com
Mobile/Whatsapp：+8618020776782
Click To Get Datasheet：
（click）
Detail
- Product NameEMERSON A6210 Thrust Differential Expansion Module
- Item NO.A6210
- Weight0.3000 kg = 0.6614 lb = 10.5822 oz
- CategoryDCS
- BrandEmerson
- Creation Time2026-04-20

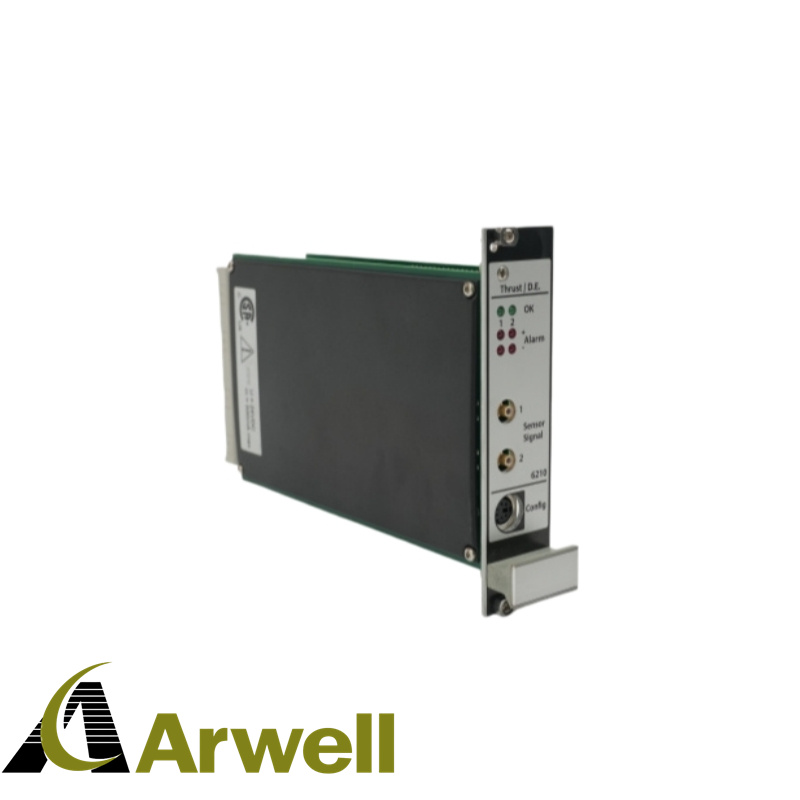

- EMERSON A6210 Thrust Differential Expansion Module
Product Parameter Information
|
Product Name |
EMERSON A6210 Thrust Differential Expansion Module |
|
Product Model |
A6210 |
|
Type |
Thrust Differential Expansion Module |
|
Manufacturer |
EMERSON |
|
Estimated Shipping Size |
3x19x12.8cm |
|
Weight |
0.3kg |
|
Place of shipment |
Xiamen, China |
|
Country of origin |
USA |
|
Number of inputs |
Two, independent channels |
|
Isolation |
Galvanically separated from power supply |
|
Frequency range |
10-1000 Hz |
|
Input resistance |
>100 kΩ |
|
Input voltage range |
-5 -+15 VDC |
|
Min dynamic input voltage |
311 mV peak to peak |
|
Permissible load |
<500 Ω |
|
Max permissible load |
3.4 kΩ at 2 mA |
|
Operating temperature |
0˚-65˚C (32˚-149˚F) |
|
Storage temperature |
-30˚-85˚C (-22˚-185˚F) |
|
Relative humidity |
5-95%, non condensing |
Main Features
The Emerson Electric Co. A6210 Thrust Differential Expansion Module is a high-reliability monitoring solution within the AMS 6500 Machinery Health Monitor system, designed for critical turbine and compressor protection. It provides continuous measurement of axial thrust position, differential expansion, and rod position using non-contact displacement sensors, ensuring accurate detection of small axial movements typically within 40 ms to prevent rotor-to-case contact.The module operates in multiple configurable modes, including thrust position, differential expansion (tandem/complementary or cone/ramp), and rod position monitoring. It is compatible with Emerson 6422–6425 displacement sensors and supports front/rear buffered outputs, 0/4–20 mA, and 0–10 V analog outputs for flexible system integration.As a 3U, 1-slot API 670/618 compliant plug-in module, it features built-in self-diagnostics for hardware, temperature, and sensor health, ensuring reliable operation and early fault detection in critical rotating machinery applications.
How to Reach Us
|
Sales manager：Jim Pei |
|
Email：sales1@apterpower.com |
|
Wechat: ZXH18020776782 |
|
Phone/WhatsApp：+86 18020776782 |
Our service
ü We can provide you with 100% original products.
ü We will provide you with 100% quality assurance.
ü We can offer you competitive prices.
ü We can ensure fast delivery.
ü We guarantee you a one-year warranty.
ü We have a professional technical team.
ü We will reply to your inquiry within 1 hour.
Major Business
ABB: Industrial robot parts of DSQC series,Bailey INFI90, DCS
Honeywell: 51/MU/MC/TC/CC ...
Triconex: 3008/3511/3625/3664/3721/3700A..
Bently Nevada: 3500/3300/330180-Cable..
Foxboro: FBM203/204/217/231, FCP240/270
Woodward: SPC valve position controller, PEAK15 digital controller
Siemens: 6DD/6DP/6ES5/6DR/6GK Series
Westinghouse Series: 1C/5X ...
General electric: IC693/IC697/IC695/DS200..
Schneider: 140 Series
Product Recommendations
|
6SL3350-6TK00-0EA0 |
C98043-A7125-L1-6 |
|
C98043-A7002-L4 6RY1703-0DA02 |
8902-EQ-00 AH465779U001 |
|
1790L811A A5E02490424 MM430/440 |
MU-TSDM02 51303932-277 |
|
6RY1803-0AA00-0AA1 |
VRD 350 Hydraulic Ring |
|
51403476-150(MC-PHA001) |
GJR2393100R1200 |
|
5X00119G01+5X00121G01 |
6ES7235-0KD22-0XA0 |
|
1C31224G01/1C31227G01 |
1SVR730120R3300 |
|
C98043-A7105-L4-9 |
1MRK000157-VBr00 |
|
8902-EQ-00 AH465779U001 |
HESG447440R0001 |
|
6RA70 C98043-A7014-L1 |
7SJ5115-5CA00-0A/HH |
|
590G /35A 590G/0350/5/3/0/1/0/04 |
DCS401.0125 DCS 400 125A |
|
C98043-A7009-L1-6 C98040-A7009-C1-4 |
SA544589-01 G1-A1-220S-4 Z2 |
|
YOKOGAWA AAI141-S00 |
AH467407U001 LA467461-1 |
|
YOKOGAWA ALR121-S00 |
690-432140B0-BF0P00-A400 |
|
YOKOGAWA YCB111-M120 |
MDA-1 7004-0043 |
|
FMU30-AAHEAAGGF |
6RA7078-6FV62-0 1P |
|
YOKOGAWA AKB331-M020 |
6GK7342-5DA02-0XE0 |
|
YOKOGAWA AAI143-S00 |
PLX 50 4Q ER- PLX 50 4Q |
|
EDS-518E-4GTXSFP-T |
790P/400/0110 ETD 790P |
|
ACS355-03E-06A7-2 |
PROFIBUS DP-V1 ETD 790P |
You May Also Like
-
ABB DCC 2580B DCC2580B 3EST000214-2070 digital control module
ABB DCC2223A 3ABB DCC 2580B 3EST000214-070 is a Digital Control Module in ABB automation control systems, designed for industrial process control and equipment management applications. -

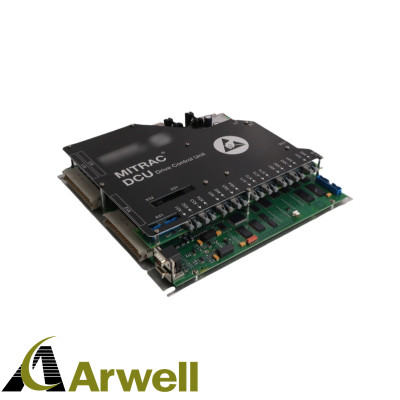

ABB DCC2223A 3EST125-977 Digital Control Module
ABB DCC2223A 3EST125-977 is a Digital Control Module in ABB's automation control, primarily used in high-precision process control systems. -
ABB DCO01 P37511-4-0369666 digital control output module
ABB DCO01 P37511-4-0369666 is a digital control output module produced by ABB used for digital signal output in ABB automation control systems. -
ABB DCC2382A 3EST125-975 digital control module
ABB DCC2382A 3EST125-975 is a digital control module produced by ABB, which is in ABB's automation control systems, especially in industrial process control, data acquisition, and equipment management. -
ABB DCS401.0020 digital control module
ABB DCS401.0020 is a digital control module designed for distributed control systems (DCS) in ABB's automation control system. -
ABB DDI01 P3711-4-0369626 digital input module
ABB DDI01 P3711-4-0369626 is a digital input module produced by ABB, used automation control systems.. -

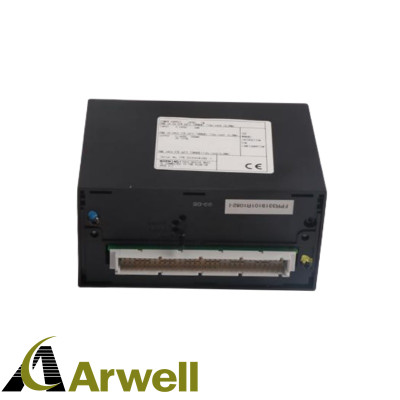

ABB DCS401.0230 digital control module
