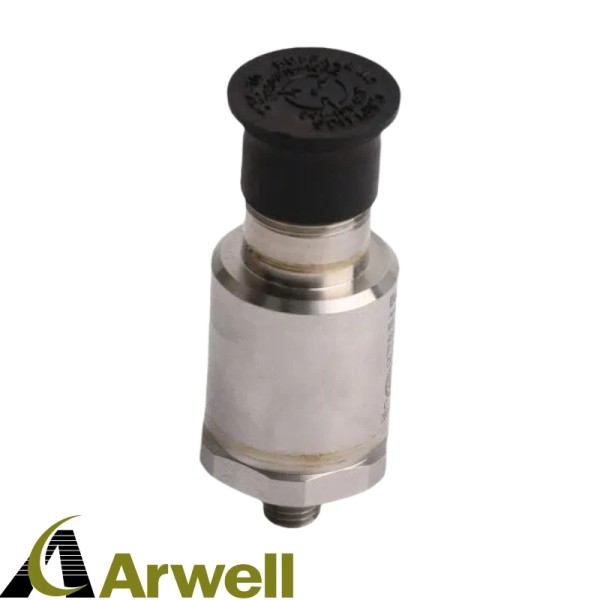

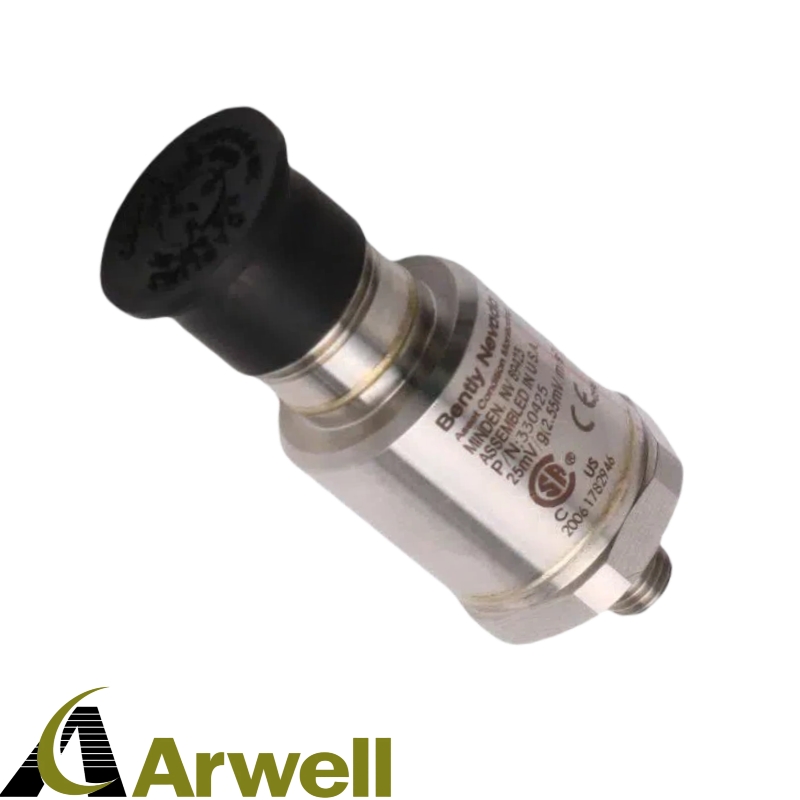

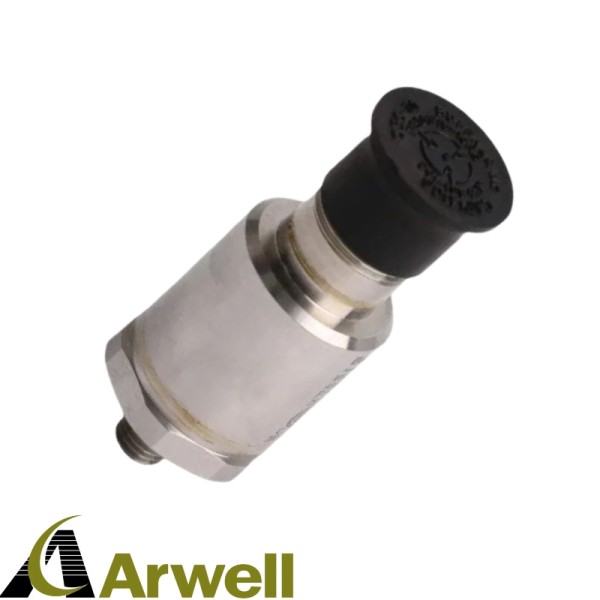

Bently Nevada 330500-02-05 Piezo-velocity sensor

Bently Nevada 330500-02-05 Piezo-velocity sensor

Item NO.: 330500-02-05
Inquiry

Price：Ask

Warranty：12 months

Condition：Brand new and factory sealed

Inquire Email：sales1@apterpower.com

Mobile/Whatsapp：+8618020776782

Click To Get Datasheet：（click）

Detail

  • Product NameBently Nevada 330500-02-05 Piezo-velocity sensor
  • Item NO.330500-02-05
  • Weight1.0000 kg = 2.2046 lb = 35.2740 oz
  • CategoryDCS
  • BrandBently Nevada
  • Creation Time2025-10-16


【Our Campany】

Arwell: the only aisle you need to walk for industrial-automation peace of mind. We stock, spec, bench-test and ship every mission-critical layer of your line—nano-PLCs to multi-core safety controllers, photoelectric specks to stainless-steel vision sensors, fingertip servo drives to 30 kW linear actuators, glass-front HMIs to IP69K wash-down panels, plus all the cables, couplers and converters that knit them together. Our 65 000-part catalog is a 24/7 buffet backed by regional hubs on four continents, so the same component that keeps an OLED fab running in Shenzhen can rescue a dairy bottler in São Paulo before the next shift whistle. Engineers answer the phone in your time zone, speak IEC 61131, OPC-UA and plain English, and will remote-log-in at 3 a.m. to reload firmware or tweak a PID loop.



【330500-02-05 】

Parameter

Value / Note

Sensitivity

100 mV/in/s (3.94 mV/mm/s) ±5 %

Frequency range

4.5 – 5000 Hz (±3 dB)

Amplitude range

50 g peak

Resonant frequency

> 15 kHz

Supply current

2 – 10 mA, constant current

Bias voltage

8 – 12 V dc

Output impedance

100 Ω

Isolation

Base isolated, > 10⁸ Ω @ 500 V

Temperature

–55 … +120 °C

Enclosure

Titanium, hermetic, IP68

Connector

2-pin MIL-C-5015, top exit

Approvals

CE, ATEX II 3G Ex nA IIC T4 Gc, SIL 2

 Description：

The 330500-02-05 is a piezoelectric velocity sensor for general-purpose vibration monitoring on pumps, motors and fans. Internal integration removes the need for external IEPE power, delivering 100 mV/in/s directly into PLC analogue cards. The hermetic titanium housing survives 30 g continuous and 5000 g shock. Certified to SIL 2 per IEC 61508 and suitable for Zone 2 hazardous areas.
