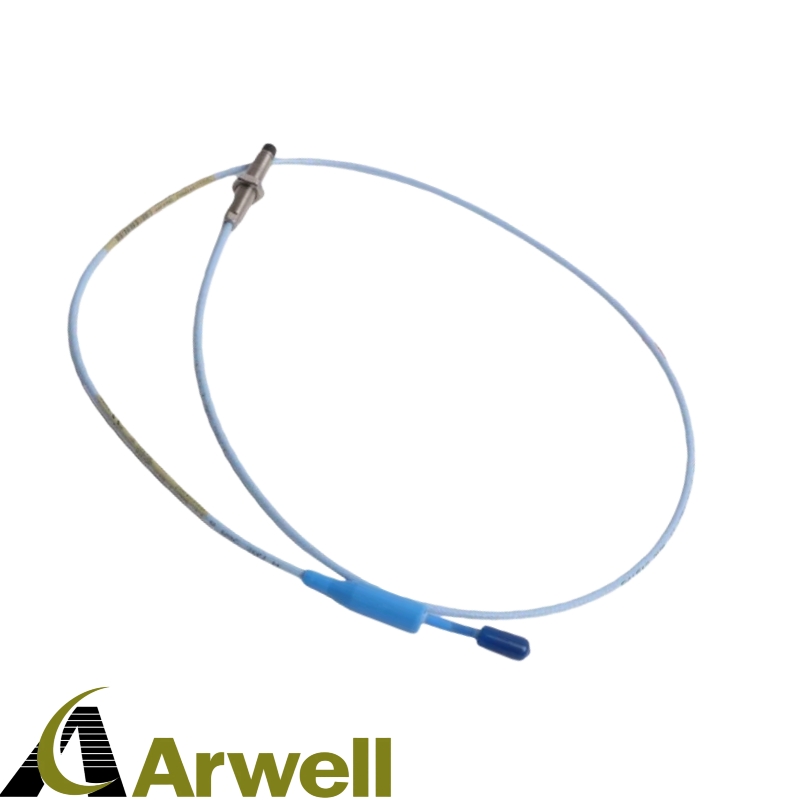

BENTLY NEVADA 330101-01-39-10-01-05 Multi-Agency-Approved Probe
Price：Ask
Warranty：12 months
Condition：Brand new and factory sealed
Inquire Email：sales1@apterpower.com
Mobile/Whatsapp：+8618020776782
Click To Get Datasheet：
（click）
Detail
- Product NameBENTLY NEVADA 330101-01-39-10-01-05 Multi-Agency-Approved Probe
- Item NO.330101-01-39-10-01-05
- Weight1.0000 kg = 2.2046 lb = 35.2740 oz
- CategoryDCS
- BrandBently Nevada
- Creation Time2025-10-21
Do you know Arwell?
Arwell Automation leads the industry, bringing you decades of expertise and uncompromising quality—all from one reliable partner. From 50,000 m² of warehouse space we keep 90,000 CNC spare parts ready for 24/7 ordering in our online shop, so Arwell Automation can deliver fast and keep your downtime to an absolute minimum.
Product info
|
Un-threaded Length |
0.1 in (2.5 mm) |
|
Overall Case Length |
3.9 in (99 mm) |
|
Total Cable Length |
1.0 m (3.3 ft) standard, 75 Ω triaxial FEP |
|
Thread |
3/8-24 UNF, full thread engagement |
|
Case Material |
AISI 303 / 304 stainless steel |
|
Operating Temp. |
–52 °C to +177 °C (probe & cable) |
|
Linear Range |
2.0 mm (80 mils) typical |
|
Scale Factor |
7.87 V/mm ±5 % (200 mV/mil) |
|
Frequency Response |
0 – 10 kHz (–3 dB) |
|
Supply Voltage |
–24 V dc (typ. –18 … –30 V dc) |
|
Output Signal |
–4 to –20 V dc into 10 kΩ load |
|
Accuracy |
≤ ±0.25 % of full scale |
|
Humidity Effect |
< 3 % ASF change at 93 % RH, 40 °C |
|
Shock / Vibration |
294 g shock, 25 g peak vibration survival |
|
Ingress Protection |
IP67 (with protector fitted) |
|
Hazardous-Area |
CSA, ATEX, IECEx (option 05) |
|
Un-threaded Length |
0.1 in (2.5 mm) |
|
Overall Case Length |
3.9 in (99 mm) |
The 330101-01-39-10-01-05 is a rugged, long-case 8 mm eddy-current proximity probe engineered for critical turbomachinery protection. The 99 mm stainless body gives generous thread engagement for high-pressure vessel penetrations while the ClickLoc™ miniature connector guarantees one-hand, vibration-proof mating. Factory-calibrated on AISI 4140 steel, the probe delivers 7.87 V/mm sensitivity over a full 2 mm linear range with better than ±0.25 % accuracy, enabling early detection of shaft cracks, misalignment or bearing wear.
Welcome to contact us
|
Sales-Nina |
|
|
Whatsapp:+86 18005028963 |
Email:at@mooreplc.com |
Packaging and transportation
1.Original packaging.
2. Original and brand new
3. We can send it to you via DHL/TNT/FedEx.
4. Delivery shall be made within 2-3 working days after payment.
FAQ
1.Q: When will you ship the goods after I make the payment?
A: Usually, our warehouse arranges shipment within 3-5 working days.
2.Q: What is your packaging?
A: 5-layer corrugated superhard, export specific cardboard box.
3.Q: What return and refund services do we offer?
A: We offer different warranties for different products. If you receive any defective goods from us, please notify us within 7 days. Returned items must remain in their original condition in order to be eligible for a refund or replacement. We cannot replace it due to human damage.
4.Q: What are your payment terms?
A: For large orders, we accept Western Union remittance. For small orders, it is recommended that you use Western Union Pay or PayPal.
Whatsapp：+86 18005028963 Email：at@mooreplc.com
Product recommendations
1) TRICONEX(3008,3625,3805E.3721,3700A 4351B...)
2) BENTLY NEVADA(3500/42M ,3500/22M,3500/95.3500/05...)
3) HIMA(F3330,F3236 ,F6217,F7126,F8621A....)
4) FOXBORO(FBM203,FBM204,FBM217,FMB231...)
5) Allan-Bradley (1756,1785,1771,1746,1769..)
6) ABB (DSQC .....)
Do you want more models
|
ABB |
NTRO02-A |
Honeywell |
900R01-0300 |
|
ABB |
DSTK183 |
Honeywell |
900S50-0460 |
|
ABB |
DSAX452 |
Honeywell |
900C75-0560 |
|
ABB |
SAFT188IOC |
Honeywell |
900C75-0560 |
|
ABB |
C87-11006 |
Honeywell |
2MLL-PMEB |
|
ABB |
IEMMU11 |
Honeywell |
2MLL-EFMTB |
|
ABB |
DASA110 |
Honeywell |
2MLL-C22B |
|
ABB |
OS30AJ12 |
Honeywell |
2MLK-CPUE |
|
ABB |
NINT-41C |
Honeywell |
2MLI-CPUE |
|
ABB |
DSQC334 |
Honeywell |
2MLI-CPUS |
Disclaimer
Arwell sells new and surplus products and develops channels to purchase such products. This website is not approved or endorsed by any of the listed manufacturers or trademarks.
Arwell is not an authorized distributor, distributor or representative of the products displayed on this website.
All product names, trademarks, brands and logos used on this website are the property of their respective owners.
The description or sale of products with these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
You May Also Like
-

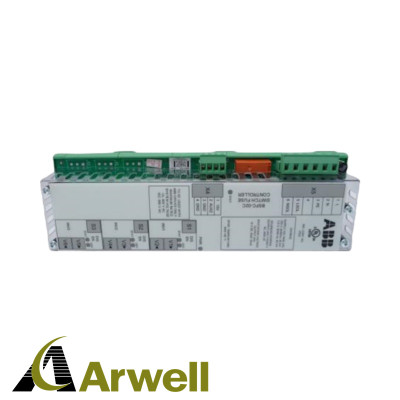

ABB BSFC-01C 3AXD50000006072 CHARGING CONTROL BOARD
